Cstruebeauty M-360 360° Cryolipolysis Body Contouring Machine

Professional Multifunction System with 3 Cryo Applicators, 40K Cavitation, 5MHz RF & 8 Lipo Laser Pads

3 Cryo Applicators | 360° Cooling Design | −10°C to +45°C | 40kHz Cavitation | 5MHz RF | 8 Laser Pads | 8-Inch Touchscreen

The Cstruebeauty M-360 360° Cryolipolysis Body Contouring Machine is a multifunctional professional aesthetic equipment system combining cryolipolysis, ultrasonic cavitation, radiofrequency technology, and wearable laser pads in one mobile console.

Featuring three cryo applicators in large, small, and mini configurations, the M-360 offers different physical contact options for selected body areas.

The system also includes a dedicated 40kHz ultrasonic cavitation handpiece, separate 5MHz body and facial RF applicators, and eight large lipo laser pads.

With adjustable cooling and heating settings, vacuum controls, an 8-inch touchscreen, and a water-circulation cooling system, the M-360 provides a versatile equipment configuration for professional body contouring studios, beauty salons, spas, and aesthetic equipment distributors.

Key Features & Technologies

1. 360° Cryolipolysis Technology

The M-360 uses manufacturer-described 360-degree cryolipolysis applicators designed to provide cooling contact around the interior surface of the applicator cup.

Its cooling system offers a manufacturer-listed temperature range from −10°C to +45°C, covering both cooling and heating settings.

Key equipment features:

• Three cryo applicators

• Large, small, and mini contact configurations

• 360-degree cooling-cup design

• Adjustable cooling and heating settings

• Vacuum-assisted tissue contact

• Adjustable operating time

• Water-circulation cooling system

The displayed temperature represents a machine setting. It should not be interpreted as the temperature reached by subcutaneous tissue.

Actual cooling performance and tissue response require product-specific validation.

2. Three Cryo Applicators

The M-360 includes three distinct cryolipolysis applicator types.

Large Cryo Applicator

A larger cup configuration intended for the manufacturer's broad-area body contouring platform.

Small Cryo Applicator

A smaller cooling cup designed for alternative contact areas.

Mini Cryo Applicator

A compact cooling applicator with a manufacturer-listed contact dimension of approximately 80 × 40mm.

The manufacturer illustrates multiple interchangeable cooling-cup sizes for the large and small applicator categories.

The availability of each cup size in the final package should be confirmed before purchase.

3. Dual Cryo Applicator Operation

The manufacturer's manual states that Cryo 1 and Cryo 2 can operate simultaneously.

This enables the two supported cryo channels to be configured from the main console.

Documented functions include:

• Two supported cryo channels

• Individual cryo interface controls

• Handpiece recognition

• Adjustable operating time

• Vacuum timing controls

• Cooling-temperature adjustment

The documentation does not establish simultaneous operation of all three cryo applicators.

4. Adjustable Vacuum System

The M-360 features a manufacturer-listed vacuum range of 0–80kPa.

The cryo operating interface includes adjustable suction and release timing.

Available software settings:

• Vacuum timing: 0.5–9.0 seconds

• Release timing: 0–4.0 seconds

• Working timer: 1–60 minutes

The console also illustrates a physical vacuum adjustment valve.

Suction settings must be selected according to the actual equipment instructions and appropriate professional screening.

5. 40kHz Ultrasonic Cavitation

The M-360 includes a dedicated ultrasonic cavitation handpiece.

The manufacturer specifies a nominal operating frequency of 40kHz.

Equipment features:

• Separate cavitation applicator

• 40kHz manufacturer-listed ultrasound frequency

• Digital operating controls

• Dedicated function selection

• Adjustable intensity and timing settings

The ultrasound module is a separate technology from the cryolipolysis cooling system.

The manual does not provide a verified acoustic output power or measured cavitation field.

6. 5MHz Body Radiofrequency

The M-360 includes one dedicated body RF handpiece.

The manufacturer lists a nominal RF frequency of 5MHz.

Key features:

• Dedicated body RF applicator

• 5MHz manufacturer-listed RF frequency

• Adjustable digital controls

• Three selectable operating modes

• Integrated multifunction equipment platform

Radiofrequency energy can produce heating effects depending on the delivered output, applicator design, and contact conditions.

Actual temperature performance and individual RF power are not specified in the supplied manual.

7. 5MHz Facial Radiofrequency

The machine also includes a separate facial RF applicator.

The manufacturer illustrates a smaller contact-head design than the body RF handpiece.

Features:

• Dedicated facial RF handpiece

• Compact contact surface

• Manufacturer-listed 5MHz RF system

• Adjustable equipment controls

• Separate facial application category

The exact output characteristics and approved facial contact areas should be confirmed for the production model.

8. Eight Lipo Laser Pads

The M-360 includes eight large lipo laser pads.

The manufacturer's specifications list an individual laser source power of 100mW per piece.

Equipment highlights:

• Eight large laser pads

• Digital pad selection

• Adjustable intensity controls

• Three manufacturer-described operating modes

• Session timer

The operating interface illustrates pad positions numbered 1–8.

The manual does not specify laser wavelength, individual diode count, measured irradiance, or laser safety classification.

9. Eight-Inch Touchscreen

The equipment features an 8-inch touchscreen with dedicated function menus.

The illustrated interface includes:

• Cryolipolysis

• Ultrasonic Cavitation

• Body RF

• Face RF

• Lipo Laser

• Operating timer

• Intensity adjustment

• Mode selection

• Start and pause controls

The central display allows operators to access different equipment functions from one console.

10. Water-Circulation Cooling System

The M-360 includes a cooling circuit using purified water or manufacturer-compatible special coolant.

The manufacturer illustrates:

• Water inlet

• Water outlet

• Overflow connection

• Filter

• Circulation components

• Cooling monitoring functions

The manual describes automatic water circulation following cooling-system startup or shutdown and stopping operation when abnormal circulation is detected.

These functions do not eliminate the need for skin protection or operator monitoring.

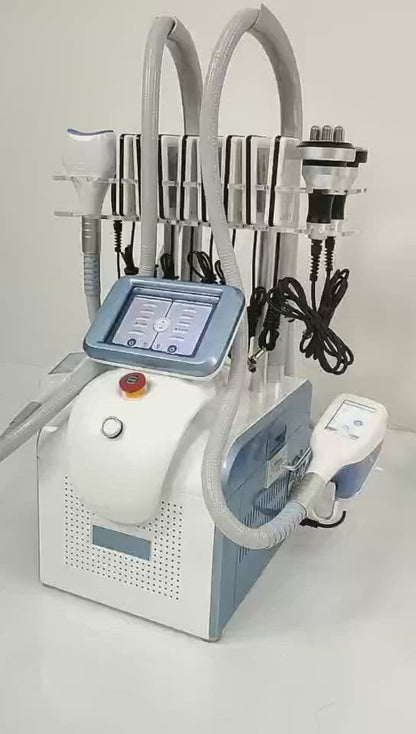

11. Professional Mobile Console

The equipment features an upright console with accessory holders and integrated controls.

Design highlights:

• Eight-inch touchscreen

• Three cryo applicators

• Cavitation and RF handpieces

• Eight laser pads

• Dedicated handpiece holders

• Emergency stop button

• Water connections

• Ventilation

• Professional equipment housing

The manufacturer lists overall machine dimensions of 63 × 55 × 96cm.

Technical Specifications

Specification	Manufacturer-Listed Details
Brand	Cstruebeauty
Reference Model	M-360
Product Category	Multifunction Cryolipolysis Body Contouring Equipment
Cryolipolysis Applicators	3
Cryo Applicator Types	Large, Small, Mini
Simultaneous Cryo Operation	Cryo 1 + Cryo 2
Cryo Temperature Settings	−10°C to +45°C
Vacuum Range	0–80kPa
Vacuum Timing Setting	0.5–9.0 Seconds
Vacuum Release Setting	0–4.0 Seconds
Cryo Timer	1–60 Minutes
Ultrasonic Cavitation Frequency	40kHz
RF Frequency	5MHz
Body RF Handpiece	1
Facial RF Handpiece	1
Cavitation Handpiece	1
Large Lipo Laser Pads	8
Listed Individual Laser Source Power	100mW per Piece
Laser Wavelength	Not Specified
Laser Diode Count	Not Specified
Total Physical Handpieces	6
Main Display	8-Inch Touchscreen
Rated Equipment Power	500W
Cooling Medium	Purified Water / Compatible Special Coolant
Electrical Supply Versions	AC220V ±10%, 50Hz / AC110V ±10%, 60Hz
Equipment Dimensions	63 × 55 × 96cm
Packing Dimensions	76 × 43 × 63cm
Gross Weight	35kg
Operating Temperature	5–40°C
Relative Humidity	≤80%

Technical specifications are based on the manufacturer's M-360 manual. Final laser characteristics, cryo-cup quantities, electrical configuration, and independent energy outputs require verification.

Cooling Cup Dimensions

The manufacturer's accessory illustrations identify the following contact-cup sizes.

Applicator Category	Illustrated Dimensions
Large Cup #1	195 × 85mm
Large Cup #2	210 × 90mm
Large Cup #3	215 × 100mm
Large Cup #4	230 × 105mm
Small Cup #1	140 × 70mm
Small Cup #2	155 × 80mm
Small Cup #3	165 × 90mm
Mini Cup	80 × 40mm

These dimensions describe the illustrated cup options rather than eight separate cryolipolysis systems.

Documented Package Configuration

The manufacturer's accessory list and equipment illustrations identify:

• 1 × M-360 main console

• 1 × Large cryo applicator

• 1 × Small cryo applicator

• 1 × Mini cryo applicator

• 1 × 40kHz cavitation handpiece

• 1 × Body RF handpiece

• 1 × Facial RF handpiece

• 8 × Large lipo laser pads

• 1 × Accessory holder set

• 1 × Fastening band set

• 1 × Power cable

• 1 × User manual

Final quantities of interchangeable cryo cups, protective membranes, replacement filters, and other consumables should be confirmed with the supplier.

Why Consider the Cstruebeauty M-360?

Five Functional Categories

Cryolipolysis, ultrasonic cavitation, body RF, facial RF, and laser pad technology.

Three Cryo Applicators

Large, small, and mini configurations within one machine.

Two Supported Cryo Channels

Manufacturer-documented simultaneous operation of Cryo 1 and Cryo 2.

Adjustable Cooling and Vacuum

A manufacturer-listed −10°C to +45°C temperature range and 0–80kPa vacuum setting.

40kHz Cavitation

A dedicated ultrasonic body applicator.

5MHz RF Technology

Separate body and facial handpieces.

Eight Laser Pads

Wearable laser pad configuration with digital selection controls.

Professional Console

An eight-inch touchscreen, equipment holders, and water-circulation cooling.

Professional Equipment Buyers

The M-360 is designed for professional buyers evaluating multifunctional cosmetic body-care equipment, including:

• Body contouring studios

• Beauty salons

• Aesthetic equipment businesses

• Spas and wellness facilities

• Beauty equipment distributors

• Professional equipment procurement teams

Specific cosmetic outcomes and appropriate applications require device-specific supporting evidence and operating instructions.

Frequently Asked Questions

What is the Cstruebeauty M-360?

It is a multifunctional professional body contouring equipment system combining 360-degree cryolipolysis, 40kHz cavitation, 5MHz radiofrequency, and laser pad technology.

How many cryo applicators are included?

Three: one large, one small, and one mini cryo applicator.

Does the machine have eight cryo handpieces?

No. The technical table lists three cryo applicators. The brochure separately illustrates eight cooling-cup sizes.

Can two cryo applicators operate simultaneously?

Yes. The manufacturer's manual states that Cryo 1 and Cryo 2 can work together.

What is the cryolipolysis temperature range?

The manufacturer lists −10°C to +45°C as an adjustable cooling and heating range.

What is the vacuum pressure range?

0–80kPa, according to the manufacturer's technical table.

Does the machine include 40K cavitation?

Yes. One 40kHz ultrasonic cavitation handpiece is included.

What is the RF operating frequency?

The manufacturer lists 5MHz.

Does the system have separate facial and body RF handpieces?

Yes. One facial and one body RF handpiece are illustrated and listed.

How many laser pads are included?

Eight large laser pads.

What wavelength do the laser pads use?

The supplied manual does not specify a laser wavelength.

What is the rated equipment power?

500W.

What screen size does it use?

An 8-inch touchscreen.

Does cryolipolysis guarantee permanent fat loss?

No. Specific outcomes and safety characteristics cannot be established solely from the manufacturer's product manual.

Does the equipment require protective cryo membranes?

The manufacturer specifically requires suitable antifreeze protective membranes during cryo operation.

Request Wholesale Pricing & Product Information

Explore the Cstruebeauty M-360 360° Cryolipolysis Machine, combining three cryo applicators with ultrasonic cavitation, body and facial RF, and eight wearable laser pads.

Contact Cstruebeauty to request:

• Complete cryolipolysis technical specifications

• Final included cooling-cup sizes

• Verified temperature and vacuum output data

• RF and laser technical specifications

• Replacement cryo membranes, filters, and accessories

• Confirmed electrical versions

• Installation and maintenance information

• Professional wholesale pricing

• International shipping options

Contact Cstruebeauty for product specifications and a B2B quotation.

Important Safety Information

Cryolipolysis, suction, ultrasound, RF, and laser-based equipment can produce adverse effects if used incorrectly.

Potential risks include cold injury, frostbite, blisters, bruising, burns, numbness, skin irritation, and other tissue complications.

Cryolipolysis procedures may also be associated with rare complications, including paradoxical adipose hyperplasia.

The manufacturer specifies the use of appropriate protective antifreeze membranes and identifies restrictions for individuals with cold-sensitive conditions and other relevant contraindications.

Professional operators should follow verified equipment instructions, use suitable protective consumables, monitor skin contact, and stop operation if abnormal symptoms occur.

This product description does not guarantee permanent fat reduction, painless operation, cellulite removal, or specific body-circumference changes.
